Essential Oil Distiller with Heating Mantle 1 litre

Analogue heating mantle without shaking for 1,000 ml or 1 litre round-flasks with electronic regulator allowing heating from room temperature to 370 °C.
Includes auxiliary rod for supporting the thermometer.
The internal diameter is 140 mm.

Analogue heating mantle without shaking for 2,000 ml or 2 litres round-flasks with electronic regulator allowing heating from room temperature to 370 °C.
Includes auxiliary rod for supporting the thermometer.
The internal diameter is 180 mm.

Double bosshead laboratory clamp made of zinc-plated steel with a maximum opening of 16 mm.
Comfortable adjustment by means of blue plastic nut buttons.
Clamping at maximum 90°.

Pinza de 4 dedos, sin nuez y apertura de 80 mm

Laboratory clamp with 4 prongs and boss head.
Enables 0 to 80 mm in diameter to be clamped securely.
Made of chromeplated metal and the prongs are covered with plastic.
Design ensures a firm grip

Universal laboratory stand with plate and rod, 600×10 mm.
The base is rectangular, 225 mm wide and 125 mm long, it's painted black.
The stem is chrome-plated with a diameter of 10 mm and a length of 600 mm.

Matraz Erlenmeyer con esmerilado 250 ml NS 29/32

Frasco ideal para mezclar líquidos
Fabricado según DIN 12347, ISO 4797 y USP standard - UE
Vidrio borosilicato 3.3
Serigrafía blanca con zona para escritura.

Capacidad 250 ml
Boca NS 29/32
Diámetro Ø base 85 mm
Altura 140 mm

Matraz Erlenmeyer con esmerilado 500 ml NS 29/32

Frasco ideal para mezclar líquidos
Fabricado según DIN 12347, ISO 4797 y USP standard - UE
Vidrio borosilicato 3.3
Serigrafía blanca con zona para escritura.

Capacidad 500 ml
Boca NS 29/32
Diámetro Ø base 105 mm
Altura 175 mm

Round-bottomed flask with female standard ground joint 29/32, 250 ml capacity.
Container with spherical bottom and long narrow neck.
Made of Glassco borosilicate glass 3.3 according to ISO 4797.
The diameter of the globe is 85 mm.
See data sheet for dimensions. See below for accessories.

Refrigerante Liebig 250 mm 2x29/32

Graduated beaker with spout and a capacity of 400 ml, low shape.
SIMAX brand: made in the Czech Republic (EU) of borosilicate glass according to ISO and DIN standards.
Laboratory container with white graduation and writing area.
Graduation range is 100 ml and with measurement up to 300 ml.
Silk-screened measurements are approximate, as they are not calibrated.
Autoclave
The thickness of the glass allows for hot work
Available in low and high shapes in different sizes.
See description or technical data sheet for more information on characteristics.

Equipo de destilación simple sin soporte

Simple distillation apparatus with 250 ml flask complete.
Educational equipment for laboratory practice in schools, colleges and universities.
The alembic consists of 5 laboratory components and 6 supporting instruments. See below for details.

Hollow glass stopper, hexagonal top and male standard ground joint, 29/32.
The dimensions of the standard joint (SJ) indicate the upper diameter and length of the joint in millimetres.
Made of borosilicate glass.
CE.

Ecological Precision Glass-Thermometer for Laboratory 0 °C to 110 °C with graduation interval of 1 °C
The graduation is printed on the solid rod and with clear view of the measurement by the contrast between the red of the liquid on a yellow background.
It has a ring to hold the thermometer.
The length of the thermometer is 300 mm and the minimum immersion length is 76 mm.

90° Angled connector tube with two ground-glass male joints, SJ 29/32, and olive connection.
Complementary laboratory part or accessory for mounting on equipment
Borosilicate glass adapter

Round-bottomed spherical flask with standard female ground-glass joint top SJ 29/32 and standard male ground-glass joint bottom spout SJ 29/32 of 1 litre. Available of 2 litres capacity.

Laboratory complement or accessory for laboratory equipment in glass for distillation processes.

1 litre intermediate spherical flask with double mouth SJ 29/32 and 14/23 to contain the water from the distillation process of essential oils. Available in 1 litre or 2 litre capacity.
Recipient with two female ground-glass mouths with standard ground-glass joint, SJ 29/32 and  14/23. It is an element of the steam distillation equipment, which is placed on the heating mantle. The upper mouth is used to connect the intermediate spherical flask where the plants are placed, and the thermometer is placed in the upper side mouth.

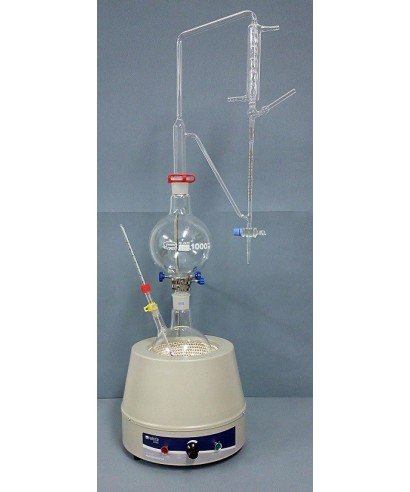

Glass apparatus for the distillation of essential oils by steam dragging of 1,000 ml of capacity, equipped with heating mantle and thermometer.
The essential oil is a highly concentrated oil extracted from plants. There are several methods to obtain essential oils, and the most common is distillation.
Available on request: distiller with larger capacity flask.

Adapter made of borosilicate glass 3.3 with standard SJ 29/32 male/female ground joint with inner glass grid.
Complement to the essential oil distillation equipment.

2,000 ml capacity round-bottomed spherical flask with standard female ground-glass joint top SJ 29/32 and standard male ground-glass joint bottom spout SJ 29/32. Available of 1 litre capacity.
Laboratory complement or accessory for laboratory equipment in glass for distillation processes.

1 litre intermediate spherical flask with double mouth SJ 29/32 and 14/23 to contain the water from the distillation process of essential oils. Available in 1 litre or 2 litre capacity.
Recipient with two female ground-glass mouths with standard ground-glass joint, SJ 29/32 and  14/23. It is an element of the steam distillation equipment, which is placed on the heating mantle. The upper mouth is used to connect the intermediate spherical flask where the plants are placed, and the thermometer is placed in the upper side mouth.

Glass apparatus for the steam distillation of essential oils, 2,000 ml capacity and equipped with heating mantle and thermometer.
The essential oil is a highly concentrated oil extracted from plants. There are several methods to obtain essential oils, and the most common is distillation.
Available on request: distiller with larger capacity flask.
