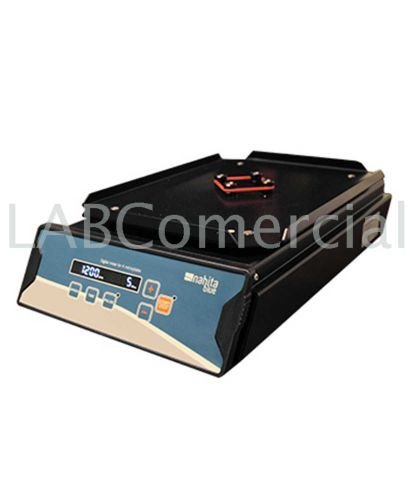

Orbital Shaker for 4 microplates, LGD2

LGD2 Orbital shaker for multi-plates with a working speed of 200 to 1,200 rpm
Equipment with a maximum shaking capacity of approx. 83 mL.
Without heating.
Orbital movement diameter of 3mm.
Clockwise and counter-clockwise rotation.
Easy fixation of the plates by means of a rubber ring in the central area.
Adjustable speed from 200 to 1200 rpm.
Digital speed control with a microprocessor.
Working function in pulse mode.
Equipment power of 16 W.
Complies with IP21 degree of protection.
More information in the description and in the technical data sheet.
Orbital shaker LGD2 for multi-plates with a working speed of 200 to 1,200 rpm
This versatile multi-plate shaker has been designed to provide gentle shaking through an orbital motion. Its clamping system uses a central rubber band that can accommodate up to four microplates, providing maximum efficiency. The key feature of this device is its brushless motor, which ensures reliable and durable operation over time.
In addition, it allows precise selection of stirring speed and time, making it a highly adaptable tool for a variety of needs. Microprocessor-controlled and equipped with a large digital display, it is easy to set up and monitor. Its pulse mode function improves mixing efficiency, while the clockwise and counter-clockwise rotation capability adds versatility, making it ideal for a wide range of applications, even in cold rooms or incubators, with an operating temperature range of +4°C to +40°C.
Data sheet
- Product Type
- Linear & Orbital Shaker
- Capacity
- 4 microplacas
- Model
- Without Heating
- Control
- Digital
- Temperature Range
- without Heating
- Heating Power
- without Heating
- Timer
- 1 – 99 min / continuous mode HOLD
- Speed
- 200-1200 rpm
- Temperature Probe
- Not Compatible, Temperature Probe
- Display
- LCD
- Movement
- Orbital
- Stirring orbital diameter
- 3 mm Ø
- Protection Class
- IP21
- Output
- No
- Dimensions (L × W × H)
- 393×267×105 mm
- Weight
- 500 g - 0.5 kg
- Power Supply
- 24 V
- Power / Consumption
- 16 W
