Laboratory dispenser for GL45 screw reagent bottles, 0.5 ml to 5ml.

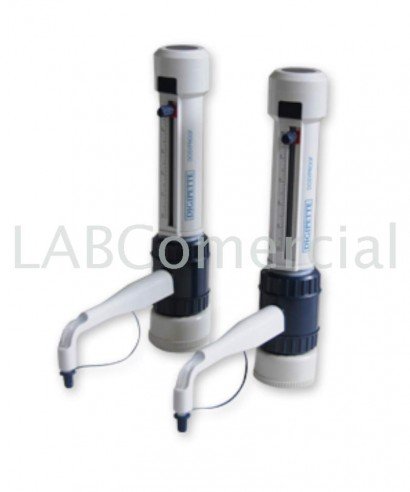

0.5-5ml Lab Bottle-Top Dispenser

Code

Dispenser for GL45 screw bottle with adjustable volume 0.5-5 ml, supplied without bottle. Digipette brand
The graduation scale is from 0.5 ml to 5 ml, with 0.1 ml intervals.
The adjustment made by means of a practical screw and a perfluoroalkoxy (PFA-teflon) plunger. This system prevents crystallization of liquids and prevents clogging or clogging.
Cleaning by fully assembled autoclave. The dispenser can be sterilized at 2 bar and a maximum steam temperature of 121 °C for 20 minutes.
Supplied with instruction manual, suction tube and key.
Includes adapters for different thread sizes GL 32, GL8 and S40.
For more information, see below.

€375.02 tax incl.
€309.93 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.

Digipette

Dispenser for laboratory bottle with thread GL45 and volume from 0.5ml to 5ml

The dispenser designed for smooth, convenient and efficient dispensing of a wide variety of liquids commonly used in laboratory testing and analysis. The screw cap is standard GL45 and includes polypropylene (PP) thread adapters for different container mouth sizes: 28 mm, 38 mm, 40 mm and 45 mm (GL25, GL28, GL32, GL38 and S40).

The dispensing volume is 0.5ml to 5ml, adjustable in 0.1ml steps and with an accuracy of ± 25µl.

It is manufactured with high quality materials:
PTFE polytetrafluoroethylene or Teflon
PFA: perfluoroalkoxide resin or Teflon-PFA
FEP: ethylene fluoride propylene or Teflon-FEP
PP: polypropylene or thermoplastic polymer
Borosilicate glass

High chemical resistance against most acids, solvents, and bases.

The discharge tube has a 360° rotary movement. It is a flexible tube with a safety system that allows quick and precise dispensing. The adjustment made by means of a practical screw or key.

It can be easily disassembled, allowing good maintenance and cleaning.

The PFA plunger prevents the crystallization of the liquids so that the plunger does not get obstructed or stuck

Sterilizable: it resists sterilization totally assembled by means of steam at 121 °C, 2 Bar absolute, during a maximum time of 20 minutes.

The distributor thread is standard GL45 and with the appropriate adapter, it can be used with other thread sizes. The following polypropylene (PP) plastic adapters supplied: GL25, GL28, GL32, GL38 and S40.

Instruction manual in English, French, and Spanish

Data sheet

Product Type
Dispensador de laboratorio
Material
PTFE, Teflon-PFA, Teflon-FEP, PP& Borosilicate Glass
Capacity
0.5 to 5 ml
Control
Analog
Colour
White - Black
Neck Thread
Screw DIN 45 - GL45
Scaling intervals
0.1 ml
Readability
± 25 μl
Valve
Yes
Sterile - Sterilisation
Sterilizable by Autoclave
Weight
750 g
Sale
by Unit

Download

Bottle dispenser Digipette

instruction manual - Bottle dispenser Digipette: Spanish , French and English

Download (244.21KB)
