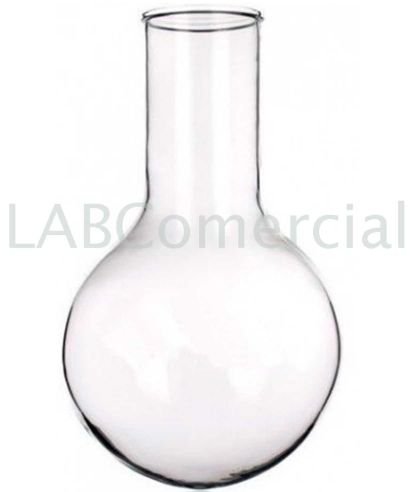

10,000ml Spherical Flask, Round Bottom & Narrow Neck
Round-bottomed, narrow-bottomed spherical flask with a capacity of 10,000 ml and made of borosilicate glass type 3.3.
Instrument for distillation and boiling processes, for the uniform heating of the substances it contains, for mixing substances, among other uses.
The neck of the flask is long and narrow; the mouth ends in a thick rim and is not a ground-glass joint.
It is manufactured in accordance with DIN ISO 1773 from borosilicate glass 3.3, type 1, class A with high heat resistance.
The product is not screen-printed with the factory logo.
For more information on the dimensions, please refer to the technical data sheet.
10000ml Spherical Flask, Narrow Neck and Round Bottom, 10 liters
Instrument for distillation and boiling processes, for the uniform scalding of the substances contained in it, for sweeping substances, among other uses. Basic laboratory material for schools, colleges, and universities.
Made of borosilicate glass 3.3 according to DIN 12347, ISO 4797 and USP standard.
General properties of borosilicate glass 3.3
This glass is distinguished by its very good chemical resistance to water, salt solutions, acids, bases and organic solvents. It is only attacked by hydrofluoric acid and, at high temperatures, by strong bases and phosphoric acid.
Chemical composition
80.00% Silica; SiO2
12.50% Boron trioxide; B2O3
2.40% of Aluminium oxide; Al2O3
3.80% of sodium oxide; Na2O
1.00% of potassium oxide; K2O
0.30% of iron oxide; Fe2O3
Chemical resistance
Hydrolytic according to DIN 12111 and ISO 719: Class 1
Acid-resistant according to DIN 12116: Class 1
Alkaline according to DIN 52322 and ISO 695: Class 2
Physical properties:
Coefficient of linear expansion: 3.3
Processing temperature: 534° C
Upper annealing temperature: 550° C
Lower annealing temperature: 494° C
Maximum working temperature: 500° C
Data sheet
- Product Type
- Round Flask, Round Bottom
- Material
- Borosilicate Glass
- Capacity
- 10 litres
- Colour
- Clear
- Neck Thread
- with Rim
- Inner diameter neck
- 65 mm
- Body
- 279 mm
- Rim Shape
- Beaded Rim
- Neck Shape
- Narrow Neck
- Body Shape
- Spherical Shaped
- Bottom Shape
- Round Bottom
- Height
- 420 mm
- Standard
- DIN ISO 1773
- Sale
- by Unit
