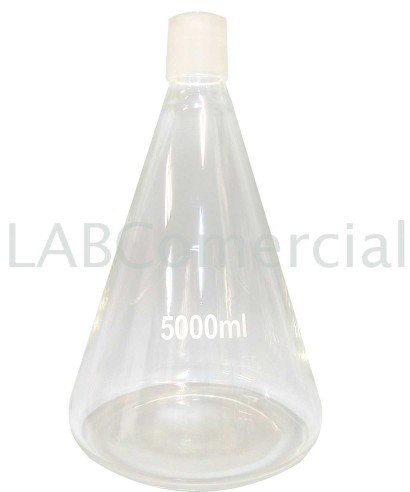

5,000 ml glass conical flask with standard male ground glass neck, 50/42.
Laboratory instrument for collecting liquids for filtration and vacuum separation processes.
Made of high quality borosilicate glass 3.3.
The ground joint mouth is standardized: 50 mm diameter and 42 mm height.
This 5-litre bottle is not graduated.
The filtration equipment is completed by accessories.
5,000ml Conical Glass Flask 50/42
Code
5,000 ml glass conical flask with standard male ground glass neck, 50/42.
Laboratory instrument for collecting liquids for filtration and vacuum separation processes.
Made of high quality borosilicate glass 3.3.
The ground joint mouth is standardized: 50 mm diameter and 42 mm height.
This 5-litre bottle is not graduated.
The filtration equipment is completed by accessories.
€210.30 tax incl.
€173.80 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Filtration - separation
Filtration is the separation of suspended solids in a fluid (liquid or gas) by means of a filter. This process can be carried out simply by using the force of gravity and is identified as filtration by gravity or through laboratory equipment and through a vacuum circuit or vacuum filtration.
One of the basic laboratory processes is vacuum filtration and depending on the technical characteristics of the filter will allow the retention of a larger size of solids.
Membrane filters retain particles according to their degree of pore which is measured in microns (µm). One micron equals one thousandth of a millimeter: 1 µm = 0.001 mm.
Microfiltration is carried out using laboratory equipment with a vacuum circuit and filters that hold micron values.
Microfiltration equipment will consist of the following pieces in order of placement from bottom to top in the case that the filtration equipment is made of glass:
Conical glass flask with ground-glass male mouth: for the collection of liquids.
Base with porous plate and olive: to place the membrane filters and connect the inlet rubber tube to make the vacuum circuit.
Membrane filter: for filtration
Clamp: for clamping the funnel with the filter base
Funnel: where the fluid to be filtered will be dumped
Depending on the type of flask mouth, the instruments are joined by ground-glass or rubber stopper.
See in the accessory: elements to form a complete filtration system of glass with membrane filter.
We also have Complete Filtration Equipment
Data sheet
- Product Type
- Spare parts for Filtration & Vacuum Manifold
- Accessory for
- Vacuum Systems & Filtration
- Accessory for Basic Laboratory
- Filtration
- Material
- Borosilicate Glass
- Capacity
- 5 litres
- Colour
- Clear
- Neck Thread
- Ground-Glass Neck
- Standard Ground-Glass Joint
- 50/42
- Base
- 220 mm Ø
- Rim Shape
- Ground-Glass Joint
- Neck Shape
- Narrow Neck
- Body Shape
- Conical Shaped
- Bottom Shape
- Flat bottom
- Height
- 380 mm
- Graduation
- Colour Printed Scale
- Screen Print Colour
- White
- Scaling intervals
- 400 ml
- Sale
- by Unit
