The PTFE agitator bearing adapter is a standard joint teflon stopper with a central hole of 8 mm.
In the centre of the part there is an 8 mm hole for the stirring rod.
The shape is conical or toric for a perfect fit with ground glass neck. There are different sizes to be selected at the time of purchase.
For more information, see the product description.
IMPORTANT: CHOOSE THE SIZE OF THE JOINT BEFORE ADDING THE PRODUCT TO THE BASKET

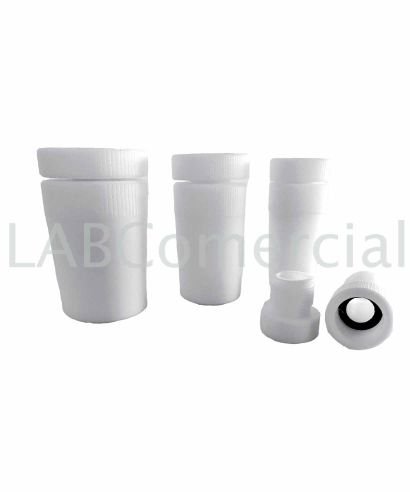

PTFE Adapter for Stirring Rod for Reactor Flask
Code
The PTFE agitator bearing adapter is a standard joint teflon stopper with a central hole of 8 mm.
In the centre of the part there is an 8 mm hole for the stirring rod.
The shape is conical or toric for a perfect fit with ground glass neck. There are different sizes to be selected at the time of purchase.
For more information, see the product description.
IMPORTANT: CHOOSE THE SIZE OF THE JOINT BEFORE ADDING THE PRODUCT TO THE BASKET
€6.50 tax incl.
€5.37 Tax excl.
Spain 21% VAT; The final tax applicable may vary according to the country of destination.
Teflon Adapter for Reactor Flask Stirring Rod
Ground conical joint made of PTFE with external sealing gaskets to prevent sticking of the connection and reduce the danger of glass breakage. A special PTFE gasket and an FPM O-ring compressed by a GL thread seal provide adequate sealing of the agitator shaft. This seal can be replaced when worn.
Accepts 8 mm diameter shafts.
Applications: Suitable for vacuum, perfect bearing for stainless steel and glass shafts.
Teflon (PTFE) is an inert material with a high resistance to most chemicals.
Working temperature resistance is -270 °C to 270 °C.
Can be sterilised by conventional means, except gamma radiation.
Meets FDA (Food and Drug Administration of the USA) and UPS Class VI (United States Pharmacopoeia approved sanitary material) requirements.
| NS | Ø Top | Ø Bottom | Height | Bore | Code |
| 14# | 15 mm | 12.5 mm | 43 mm | 8 mm | 174.014-P |
| 19# | 20 mm | 16.5 mm | 46 mm | 8 mm | 174.019-P |
| 24# | 26 mm | 22 mm | 48 mm | 8 mm | 174.024-P |
| 29# | 30 mm | 26 mm | 50 mm | 8 mm | 174.029-P |
| 34# | 35 mm | 31 mm | 50 mm | 8 mm | 174.034-P |
| 40# | 40 mm | 32 mm | 52 mm | 8 mm | 174.040-P |
| 45# | 45 mm | 41 mm | 63 mm | 8 mm | 174.045-P |
Data sheet
- Product Type
- Stirring Rod
- Accessory for
- Overhead Stirrer / Reactor Flask
- Accessory for Basic Laboratory
- For Reactor Flask
- Material
- Teflon o PTFE
- Diameter
- 8 mm Ø
- Sale
- by Unit
